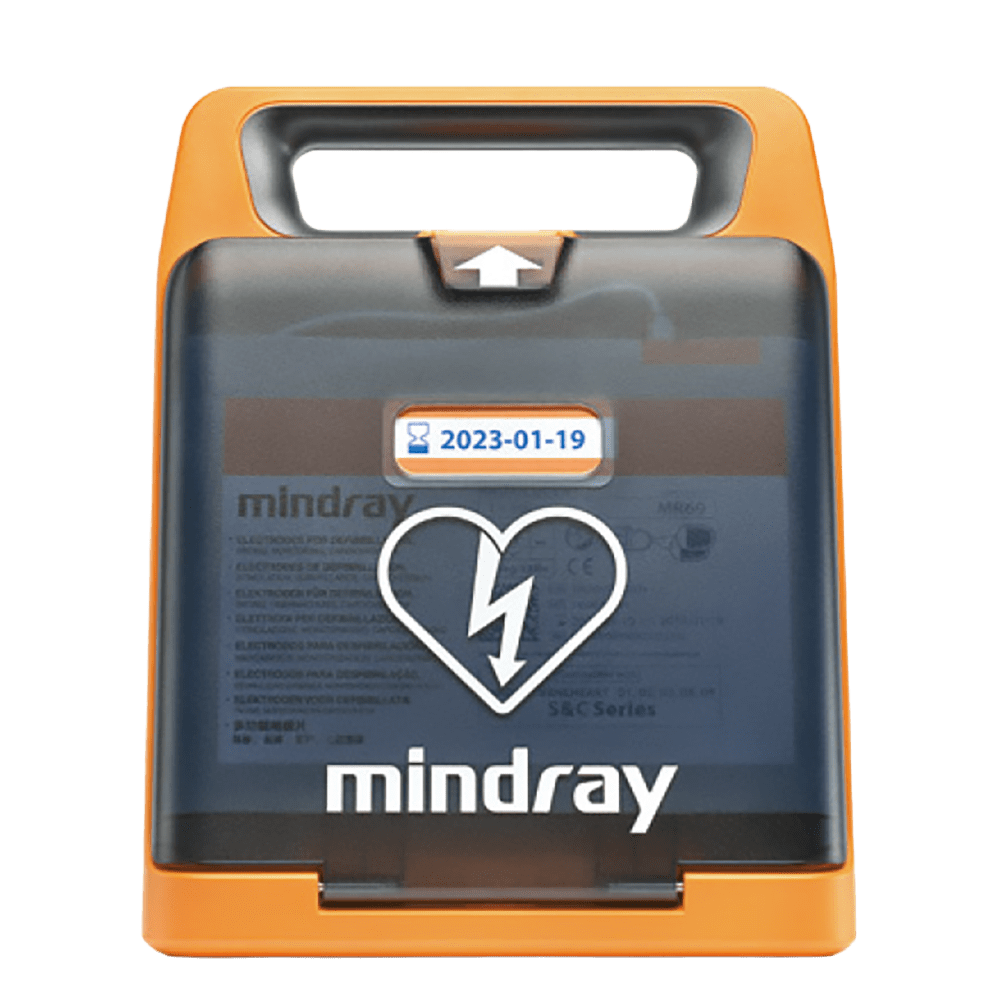

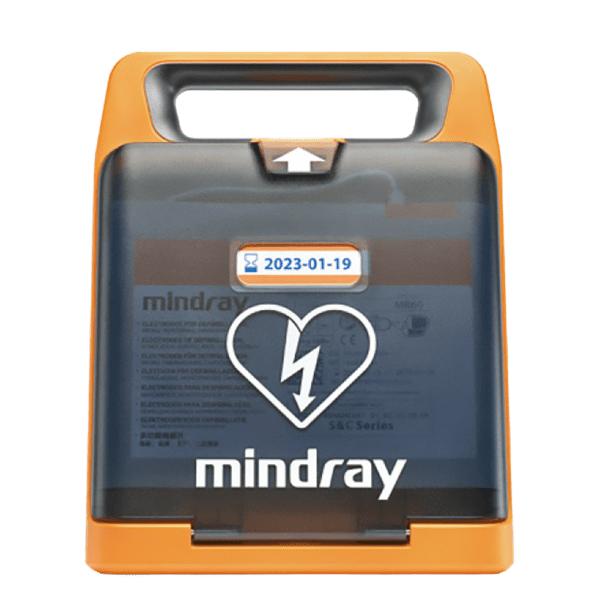

MINDRAY C2 Fully-Automatic Defibrillator with 4G

Introducing the Mindray C Series – Automated External Defibrillators

The Mindray C2 — smarter, faster, and simpler

Smart and Easy –  Offering a Reliable, Durable  and Easy to Use AED for First-time rescuers with full-colour  7″ screen

Designed for first-time and infrequent rescuers, the Mindray C2 delivers the latest in easy-to-use AED technology.   Combining   ResQNavi™ coaching with QShock™ rapid analysis to deliver
the first shock in under 8 seconds. With high-energy 360J biphasic
capability and rugged IP55 protection, the Mindray C2 offers a dependable public-access AED.

< 8 sto first shock
360 Jbiphasic energy
IP55dust & water rating
Mindray C1A AED

ResQNavi™ guidance

Clear voice prompts and metronome coach rescuers through pad placement and CPR.

QShock™ speed

ECG analysis and pre-charge run in parallel — shock ready in < 8 s.

360J energy

Biphasic waveform with impedance compensation: Adult 200–300–360 J, Child 50–70–100 J.

Mindray C1A vs C2 Comparison

Specification Mindray C1A Mindray C2
Operation Semi-auto / Auto Semi-auto / Auto
Display No display 7" TFT colour LCD
Weight 2.0 kg 2.3 kg

 Model Numbers
Auto C1A-A C2-A
Semi C1A-S C2-S
Auto Wireless C1A-A-W C2-A-W
Semi Wireless C1A-S-W C2-S-W
Auto 4g C1A-A-4G C2-A-4G
Auto 4g C1A-A-4G C2-A-4G

Mindray C Series AEDs

This product is not a substitute for direct medical attention from a healthcare practitioner. Always read the label and follow the directions for use.

Additional information

Other Specifications
Pricing Unit

Each
Min Order Qty

1
ARTG ID

166368
Medical Device Class

Class 2b
UNSPSC Code

42172101
Tax Schedule

Non-Taxable
Location

AU-Cameron Dr
Is Dangerous Good

Yes
Warranty Period (Months)

8
Summary Summary
Device category Device categoryWhat type of device this is (public access AED vs monitor/defibrillator). Helps match products to the intended setting and user training level. Public access AED
Waveform WaveformThe shock waveform design. Manufacturers tune waveforms for effectiveness across patient impedance while limiting tissue damage. Biphasic truncated exponential (BTE)
Max energy Max energyThe highest shock energy the device can deliver. Higher maximum energy can be relevant for difficult-to-defibrillate patients and escalation protocols. 360 J
Shock types Shock typesWhether the unit is semi-automatic (rescuer presses shock) or fully automatic (unit delivers shock). Fully automatic
Shock Shock
Time to first shock Time to first shockHow quickly a device can be ready to deliver a shock once it’s in use. Faster shock readiness can reduce delays in treatment. < 8 s (to shock ready, 200J, new battery)
Energy protocol details - Adult Energy protocol details - AdultThe escalation sequence for shocks (adult). 200–300–360 J
Energy protocol details - PaediatricThe escalation sequence for shocks using either child mode, or separate child pads. 100–100–200 J
Configurable Energy ProtocolsEnergy protocol can be configured post-purchase. Yes (Adult 100–360 J; Child 10–100 J)
Rhythm analysis + parallel charge Rhythm analysis + parallel chargeHow the AED analyses rhythm and manages charging relative to CPR. Designs that reduce interruptions can improve CPR continuity. Yes: Charge time 0 s (pre-charged during ECG analysis)
Pads are preconnected Pads are preconnectedWhether electrodes are stored preconnected/ready-to-pull. Reduces setup steps under stress and can save seconds. Yes
CPR CPR
Voice prompts Voice promptsAudible instructions that guide a rescuer through use. Helps reduce hesitation and errors for minimally trained users. Yes (voice prompts adjust based on skill level, volume auto adjusts in loud environments)
Metronome MetronomeAn audible beat to pace compressions. Helps rescuers maintain guideline CPR rate. Yes
CPR Technology CPR TechnologyTechnology to improve the user's CPR effectiveness. Can improve compression quality when the feature is present. ResQNavi, adjusts prompts based off rescuer skill level
Connectivity Connectivity
4G capability 4G capabilityWhether the model supports cellular connectivity. Useful where Wi‑Fi isn’t reliable and for unattended locations. Yes
WIFI capability WIFI capabilityWhether the model supports cellular connectivity. Useful where Wi‑Fi isn’t reliable and for unattended locations. -
Monitoring Monitoring
Remote monitoring platform Remote monitoring platformThe platform used for status reporting and program management. Supports centralized maintenance and compliance workflows. AED‑Alert 2.0 platform
Alerts/notifications Alerts/notificationsHow the program notifies stakeholders of use, faults, or expiring consumables. Helps reduce downtime and missed readiness issues. Alerts + pads expiry reminders
Durability Durability
IP rating IP ratingIngress protection rating for dust/water. Higher IP ratings are beneficial for outdoor, industrial, or harsh environments. IP55
Drop-tested Drop-tested 1.5 m
Vibration testedDurability claims and test standards. Matters for mobile, vehicle, or industrial deployments. MIL-STD-810G (method 514.6)
Interface Interface

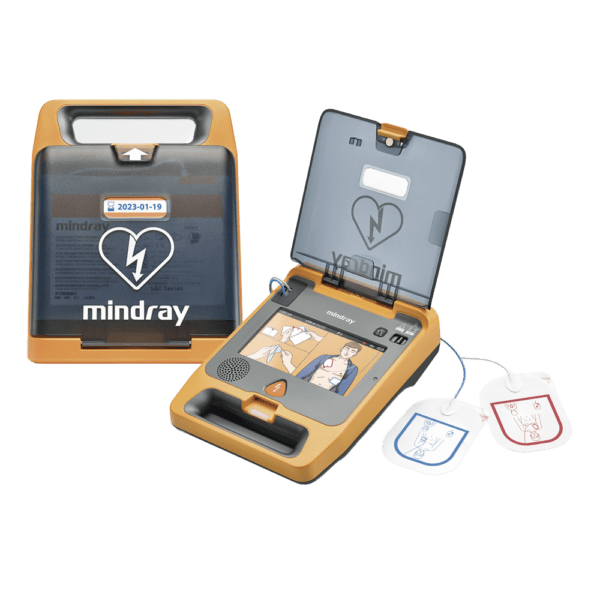

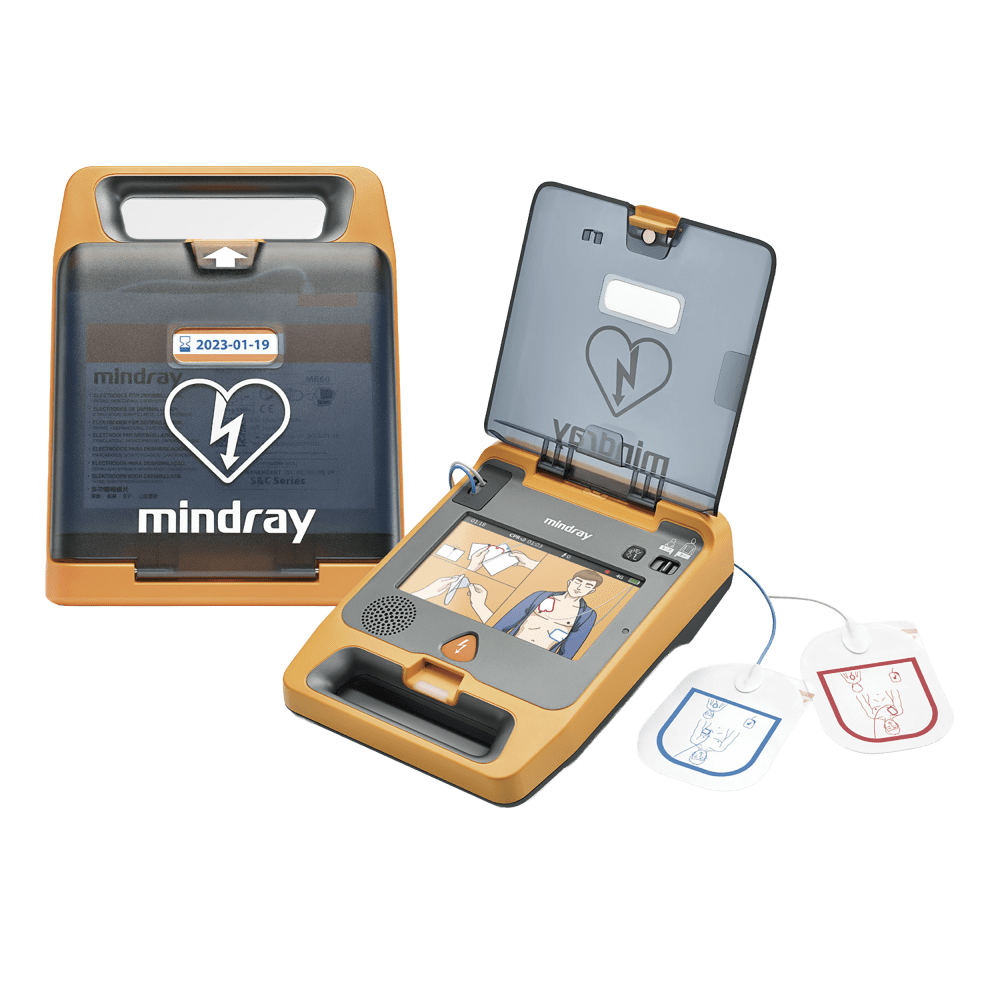

Display DisplayScreen presence/type. Displays can provide clearer guidance, incident info, or advanced monitoring depending on the device. Large 7 inch colour screen for animated step by step instructions. Displays instructions, device status, battery life, connectivity status)
Visual Prompts Visual PromptsIndicator lights that prompt the user while the device is being used. -
Size/Weight Size/Weight
Device weight Device weightApproximate device weight. Impacts portability and suitability for mobile response kits. 2.3 kg (including one battery)
Device dimensions Device dimensionsOverall size/footprint. Impacts cabinet fit, portability, and storage constraints. 210 mm × 286 mm × 78 mm
Maintenance Maintenance
Pads + battery combined cartridge Pads + battery combined cartridgeWhether pads and battery are a single replaceable cartridge. Simplifies maintenance and reduces tracking of multiple expiries. Batteries and Pads replaced separately
Electrode life Electrode life 5 years from manufacture date
Battery life 3 years from install date (when connected) - 1 year installation window from manufacture date
Self-test/readiness Self-test/readinessAutomatic self-testing and readiness indicators. Helps ensure the device is rescue-ready between inspections. Auto-test: daily/weekly/monthly/quarterly; status indicator shows readiness
Pro features Pro features
Manual override / manual mode Manual override / manual modeAbility to deliver shocks under manual control (advanced users). Relevant for professional responders and clinical governance. -
Cloud/system connectivity Cloud/system connectivityIntegration with broader systems (cloud/program tools). Helpful for reporting, post-event review, and fleet management. Wireless data transfer to AED-Alert 2.0 system (4G)
CardiAct Connect Compatible CardiAct Connect CompatibleCompatible with Aero Healthcare's CardiAct Connect Monitoring software Yes
Warranty Warranty
Warranty WarrantyManufacturer warranty period. Impacts lifecycle planning and program risk management. 8 years
Download Safety Data Sheet (PDF) for MINDRAY C2 Fully-Automatic Defibrillator with 4G

Download ARTG Public Summary (PDF) for MINDRAY C2 Fully-Automatic Defibrillator with 4G
Download Instructions for Use (PDF) for MINDRAY C2 Fully-Automatic Defibrillator with 4G
