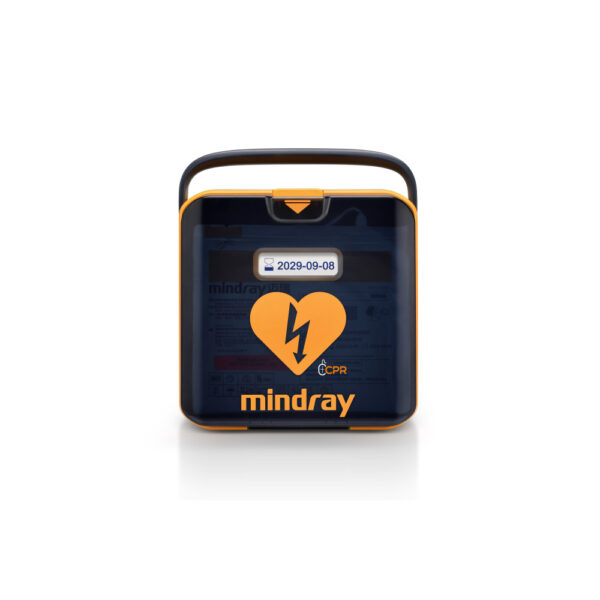

Mindray BeneHeart L2-S
Semi-automatic AED with a 4.3″ colour touchscreen.
The L2-S pairs the 4.3" colour touchscreen with responder-controlled delivery. It analyses in under five seconds and charges while it analyses, then prompts the operator to press, with the rhythm visible on screen throughout.
Responder-controlled shock
Charging happens during analysis and the operator presses to deliver, with the ECG rhythm displayed for the duration of the rescue.
CPR feedback on screen
Compression rate and depth are shown live during the rescue, measured from the electrode pads or from the MR66 CPR sensor.1
Post-event review
At least five hours of ECG waveform, 1000 events and an hour of voice recording are retained for debrief and clinical handover.
Mindray L1 vs L2
| Specification | Mindray L1 | Mindray L2 |
|---|---|---|
| Operation | Semi-auto / Auto | Semi-auto / Auto |
| Display | 1.96" dot-matrix LCD | 4.3" colour touchscreen |
| Rescuer guidance | Voice prompts + CPR metronome | Animation + voice + CPR feedback |
| Capacity | 400 shocks @ 200 J | 350 shocks @ 200 J |
| Operating time | ≥ 15 hours | ≥ 12 hours |
| Energy | Up to 360 J escalating | Up to 360 J escalating |
| Charge time | 0 s effective — pre-charged during analysis | 0 s effective — pre-charged during analysis |
| Weight | 1.9 kg | 1.9 kg |
| Dimensions | 196 × 191 × 65.5 mm | 196 × 191 × 65.5 mm |
| Ingress rating | IP55 · 1.5 m 6-surface drop | IP55 · 1.5 m 6-surface drop |
| Models Available | ||
| Auto | L1-A | L2-A |
| Semi | L1-S | L2-SThis Device |
| Auto + CPR sensor | L1-A-CPR | — |
Figures from the Mindray BeneHeart L1 / L2 datasheet and the L series operator’s manual (H-046-028014-00). Specifications are subject to change without notice.
Mindray L Series AEDs
Zero Compromise
The Mindray BeneHeart L2-S is available in Australia through Aero Healthcare.
- Mindray BeneHeart L Series brochure (L1 / L2), Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Source for 38% smaller / 22% lighter, up to 360J escalating energy, CPR Coach depth and rate guidance, ResQNavi™ and AED-Alert 2.0.
- Mindray QShock™ Plus — L series AED defibrillation technology. Source for the five-second post-CPR re-shock and comparative shock-cycle timing.
- Mindray BeneHeart L1 / L2 Datasheet. Source for 1.9 kg weight, pre-shock pause under 5 s, IP55, 1.5 m 6-surface drop, 5-year battery and pad standby, and all technical specifications.
- European Resuscitation Council Guidelines 2025. Each minute of delay to defibrillation is associated with a higher probability of failure to terminate VF and lower probability of survival to discharge.
- Tang H, Wu R, Yin L, et al. Escalating vs Fixed Energy Defibrillation in Out-of-Hospital Cardiac Arrest Ventricular Fibrillation. JAMA Netw Open. 2025;8(4):e257411.
Distributed in Australia by Aero Healthcare. Specifications may vary based on installation environment and usage conditions. For details, consult the manual.
This product is not a substitute for direct medical attention from a healthcare practitioner. Always read the label and follow the directions for use.
