NIO Paediatric with Fixation Dressing

NIO Paediatric = New Intraosseous Device

No drills, batteries, or extra parts. Meet the New IO.

NIO offers unparallel performance, ergonomics and usability for rapid and safe intraosseous access to multiple locations.

NIO is a simple, automatic IntraOsseous (IO) device ready to use for safe, quick and easy vascular access.

NIO is used in emergency situations when vascular access is needed for fluid and drug administration. NIO is small, light, and easy to use in even the most demanding situations.

NIO is designed to be easily injected into either the tibia or the humerus in all clinical settings.

NIOs

Features:

  • Sterile
  • Ready To Use
  • User-friendly
  • No exposed needle
  • Pocket-sized & lightweight ~100g
  • Needle Gauge 18G
  • No external power source or battery
  • Vascular access in 10 seconds
  • Disposable and single use
  • No maintenance required
  • Safety features
  • 5-year shelf life

The NIO Pediatric features an innovative stabilizer hub which serves four functions:

  • Unique location arrows aid insertion site identification
  • Needle stabilizer assists in securing the needle to the limb.
  • Adjustable needle penetration depth means one device can accommodate a wide range of pediatric patients
  • Mechanical stopper limits needle depth, preventing over-penetration

Clinically Proven Success

SAFE ON THE BONE.

The NIO has proven to be safe on the bone and resulted in zero incidents of bone fracture as observed by post-insertion x-rays.

EASILY TOLERATES COMMON USER ERRORS.

A recent study evaluated common user errors related to needle placement and found that even when placed up to 5cm from the correct insertion site, the NIO maintained an 85% success rate.

FIRST ATTEMPT SUCCESS RATES AS HIGH AS 98%.

Initial studies demonstrated an overall average success rate of 91.3% for the proximal tibia and 93.1% for the humeral head. The New York Institute of Osteopathic Medicine conducted an additional study which established a proximal tibia success rate of over 98%.

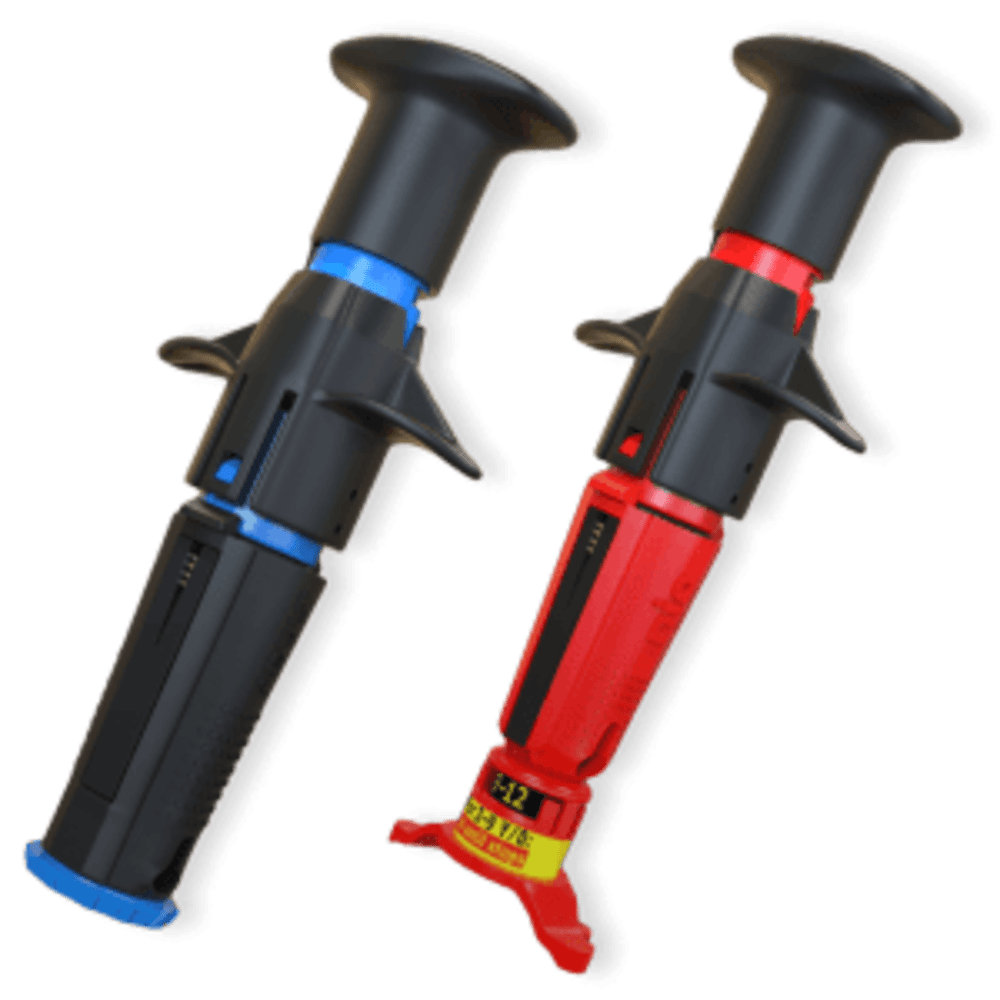

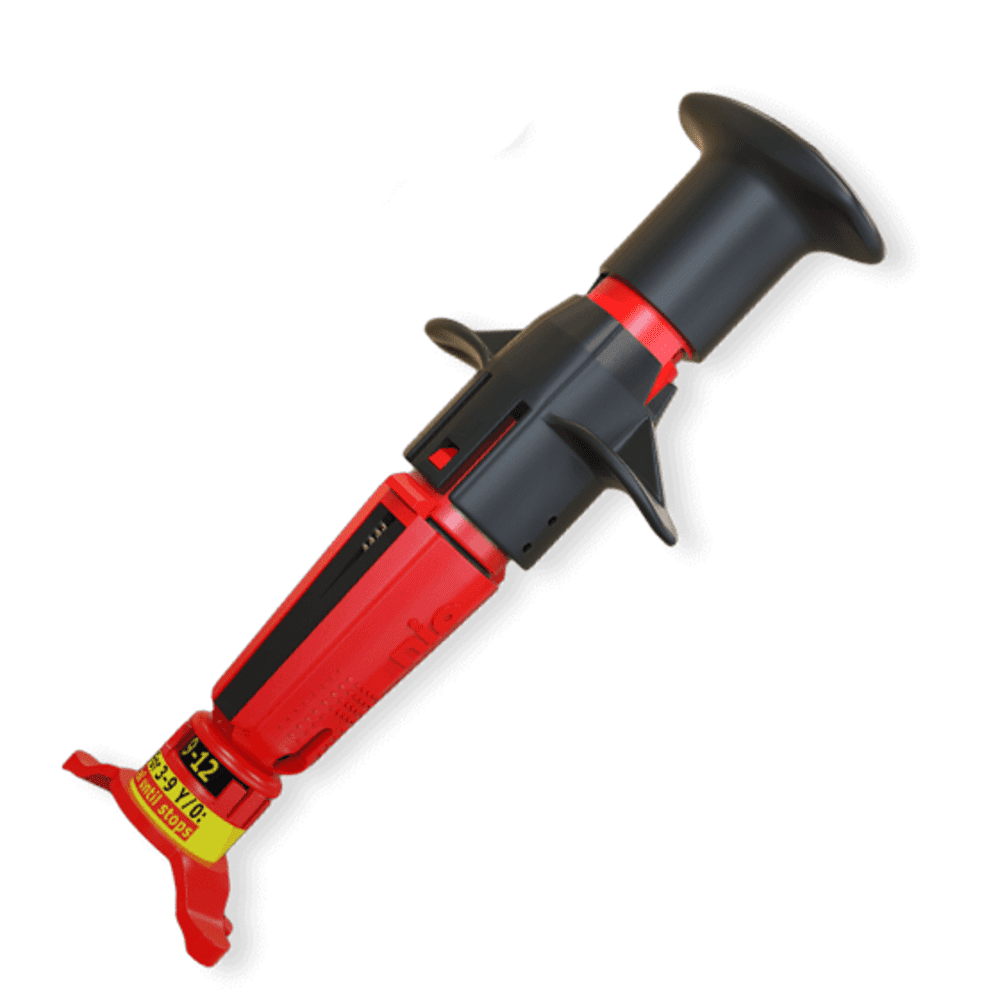

Image of NIO Paediatric with Fixation Dressing

“…the first attempt success rate for inserting an NIO in the tibia was 98%, Humerus 91%…”
NEW YORK INSTITUTE OF TECHNOLOGY COLLEGE OF OSTEOPATHIC MEDICINE



Product Specifications

Dimensions 148.55mm (5.9in) L
64.5mm (2.6in) W
43.7mm (1.72in) H
Weight 85.6g
Packaging Packed individually in a peel-back blister pack
Needle Gauge 18G
Needle Effective Length . 38.1mm (1.5in)
Needle Penetration Depth 3-9 years: 14mm (Leave red spacer intact)
9-12 years: 18 mm (Remove red spacer)
Safety Mechanism 1. Rotating safety latch prevents accidental activation
2. Simultaneously compressing the device against the skin while squeezing the trigger wings activates device
Shelf Life* 5 years

Specifications are subject to change without notice.
*From date of manufacture

Additional information

Weight 1 kg
Size

Paediatric

Pricing Unit

unit/1

Location

AU-Warehouse

Min Order Qty

1

UNSPSC

42142620

Tax Schedule

Taxable

Needle Gauge

18G

Product Data Sheet
